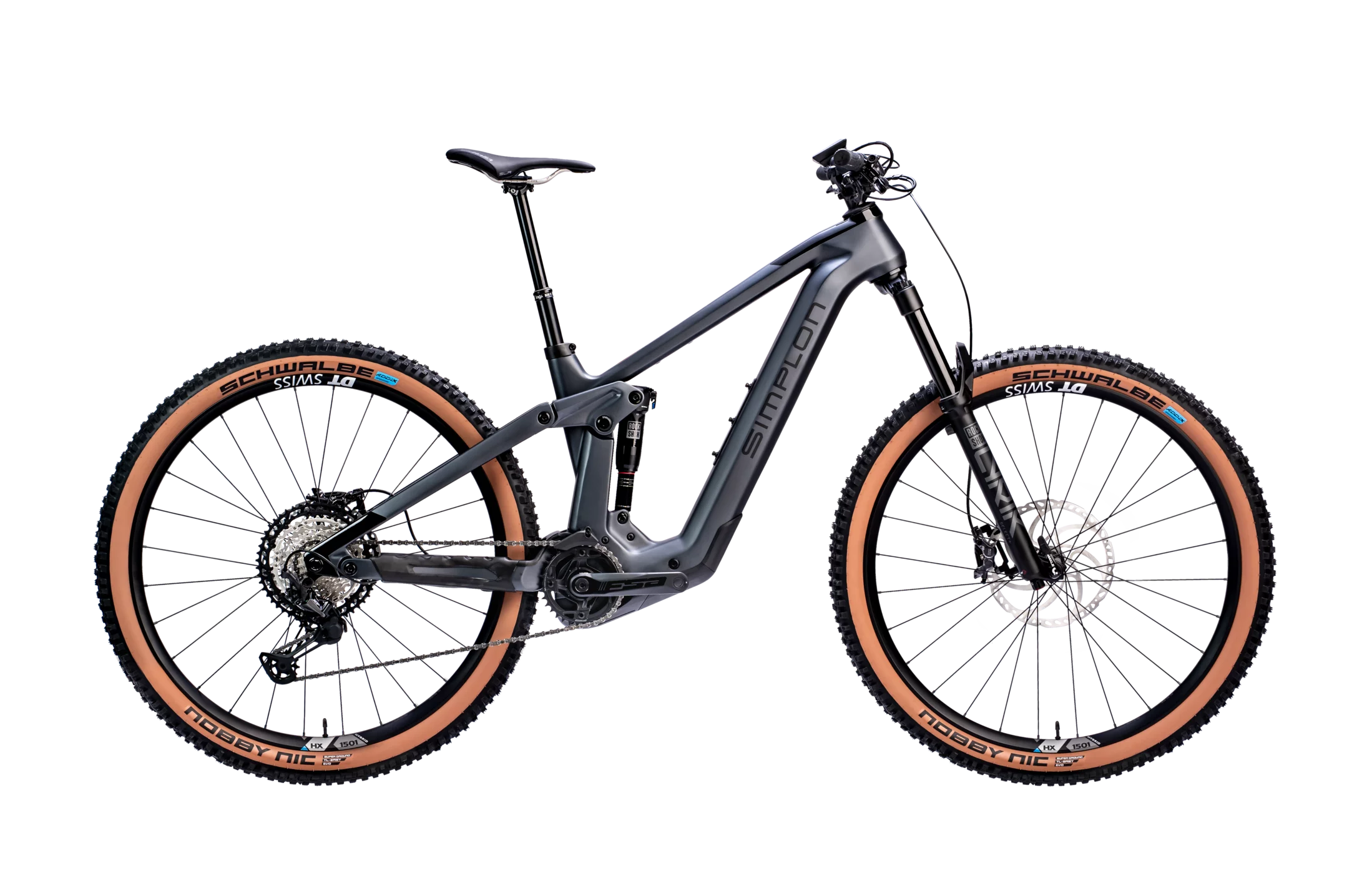

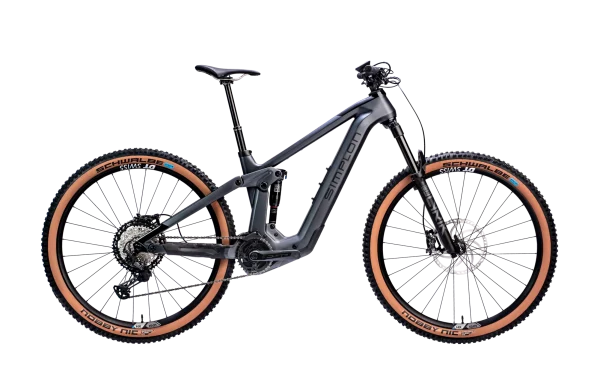

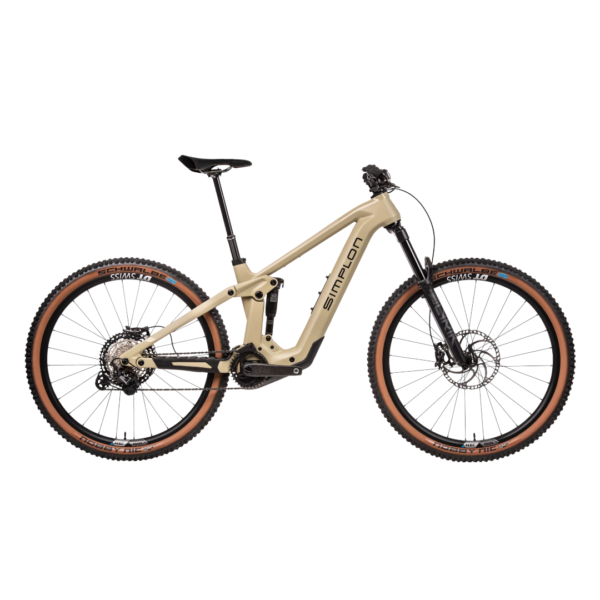

Bicicletta mtb elettrica SIMPLON Rapcon eCX
Specifiche tecniche
Frame material CARBON
Max. system weight (bike + load) 140 KG
Travel (rear/front) 165/170 MM | 150/150 MM

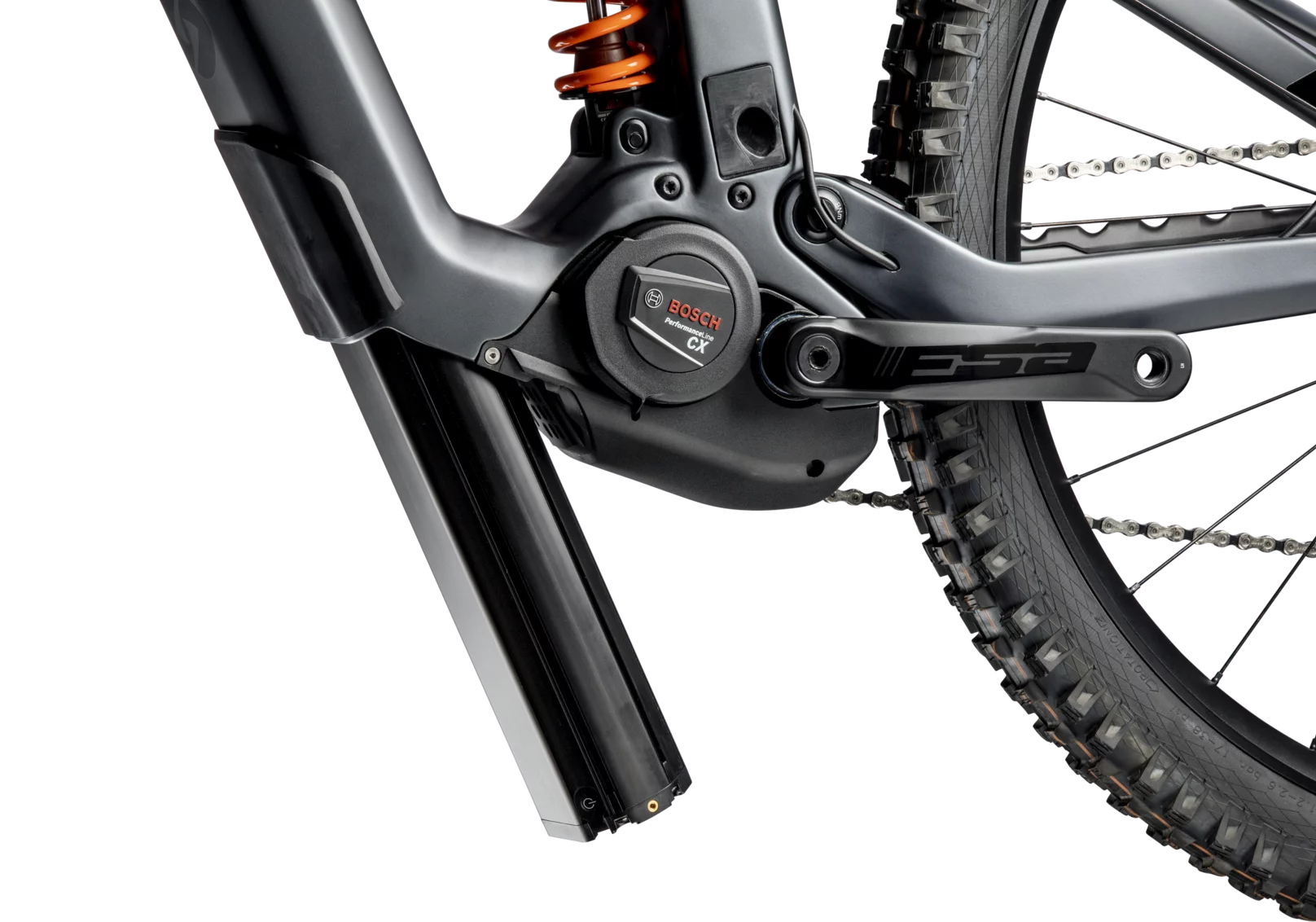

Motor BOSCH PL CX GEN4
Battery 500 / 750 WH
Total bike weight FROM 21,76 KG

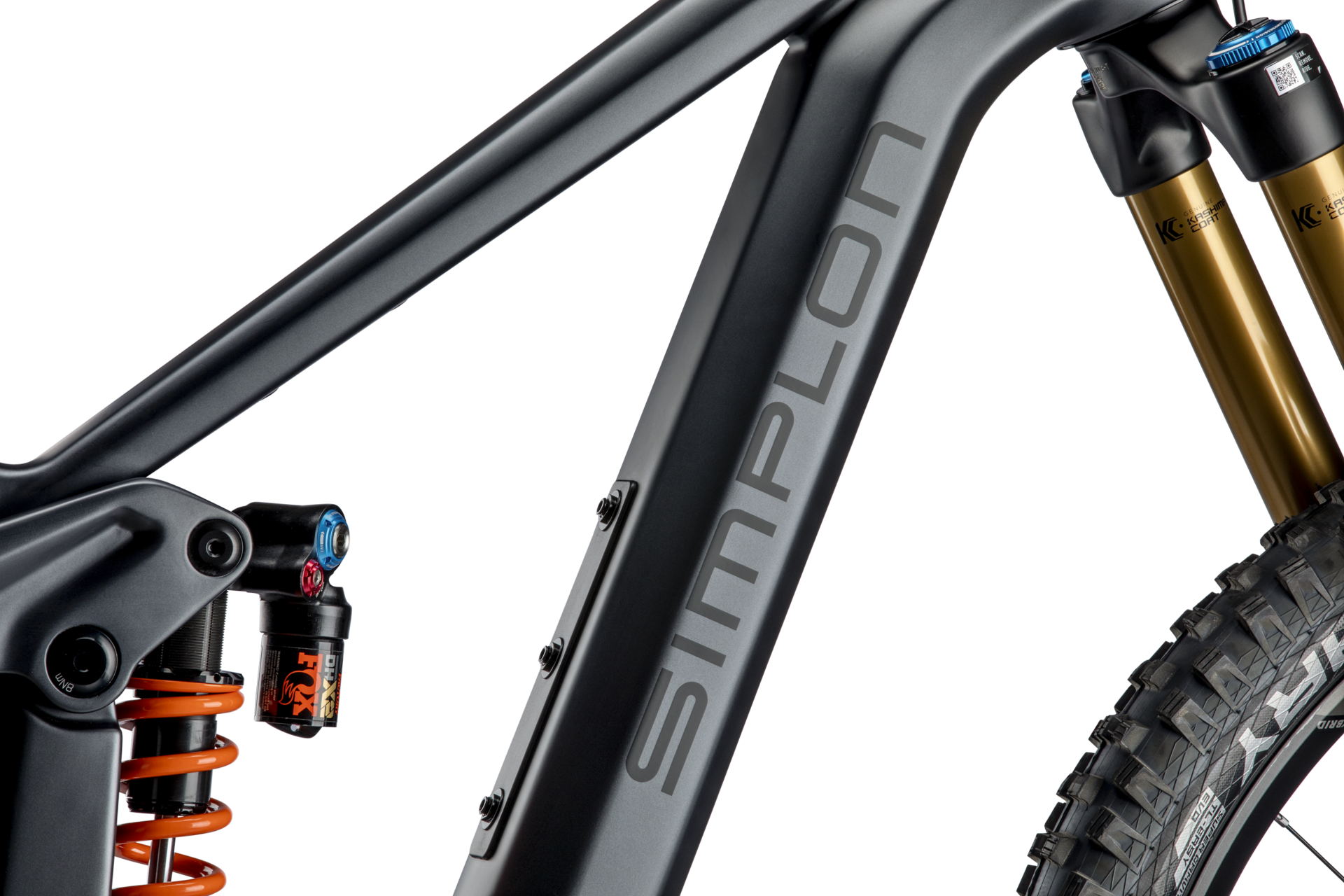

| Frame | Rapcon Pmax CX, Sand Matt | Black Matt, M (39,5) | 3.89 kg |
|---|---|---|
| Brake | Magura MT 7 – HC Hebel (lever);4-Kolben (pistons);220mm;203m | 1.34 kg |
| Saddle | Selle Italia, X-Bow, hidden flow hole, 145*255mm, boost | 0.23 kg |
| Handlebar | Simplon CARBON RISER 800 | 0.20 kg |
| Stem | Zero III 35mm x 0° | 0.13 kg |
| Wheelset | DT Swiss H1900-Schwalbe Magic Mary, Super Trail, Ultra Soft | 5.17 kg |
| Spacer | 30mm Spacers Carbon | 0.01 kg |
| Fork | RockShox Lyrik 29 Select+, 150mm | 2.40 kg |

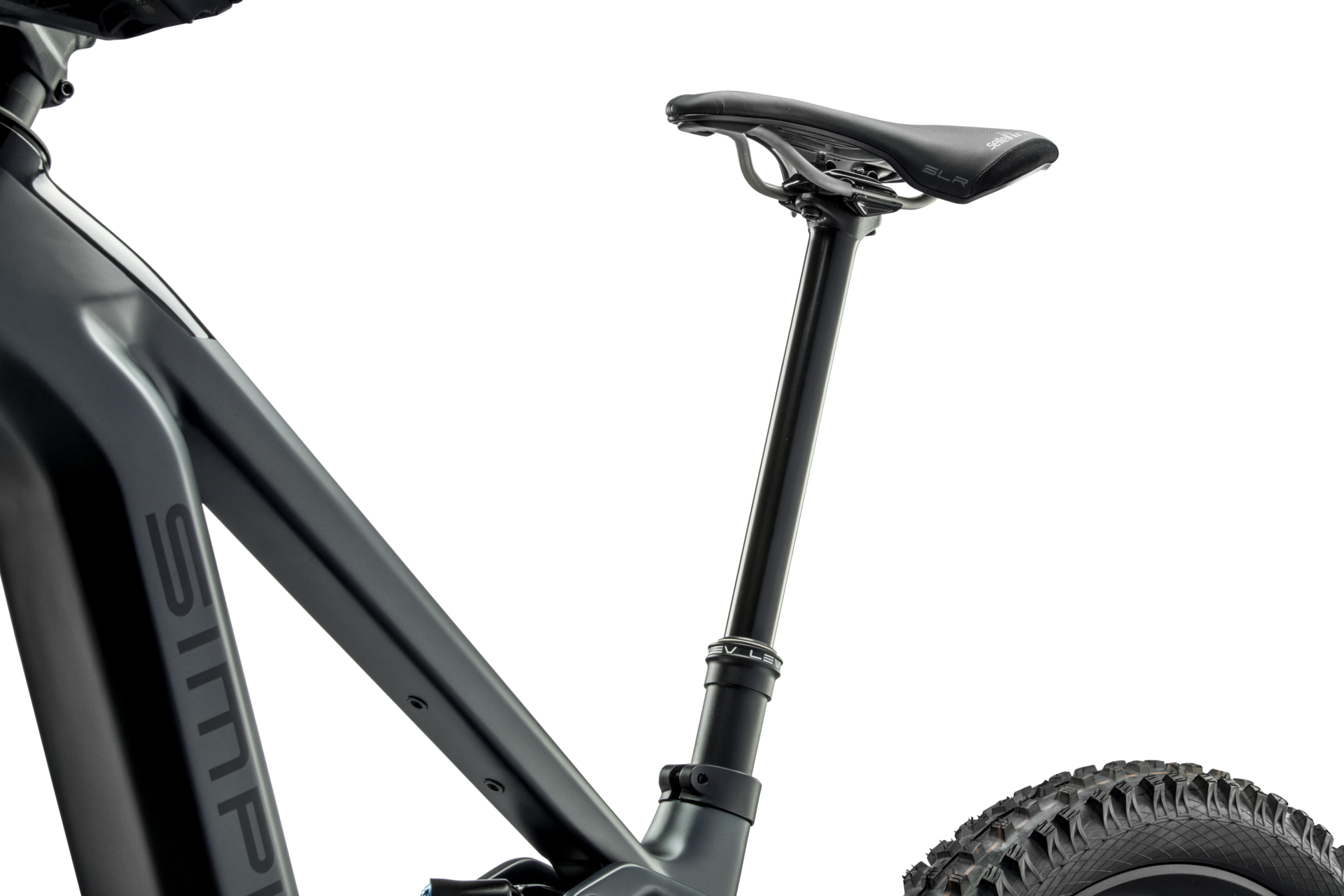

| Seatpost | BikeYoke Revive, 125mm, 31.6 (Remote Seatpost only) | 0.51 kg |
| Grips | Griffe Ergon GE10 EVO | 0.11 kg |
| Brake-/ Shiftcomponents | Shimano XT-12 | 1.45 kg |
| Crankset | FSA CK-745 alloy für Bosch Gen. 4 170mm | 0.45 kg |

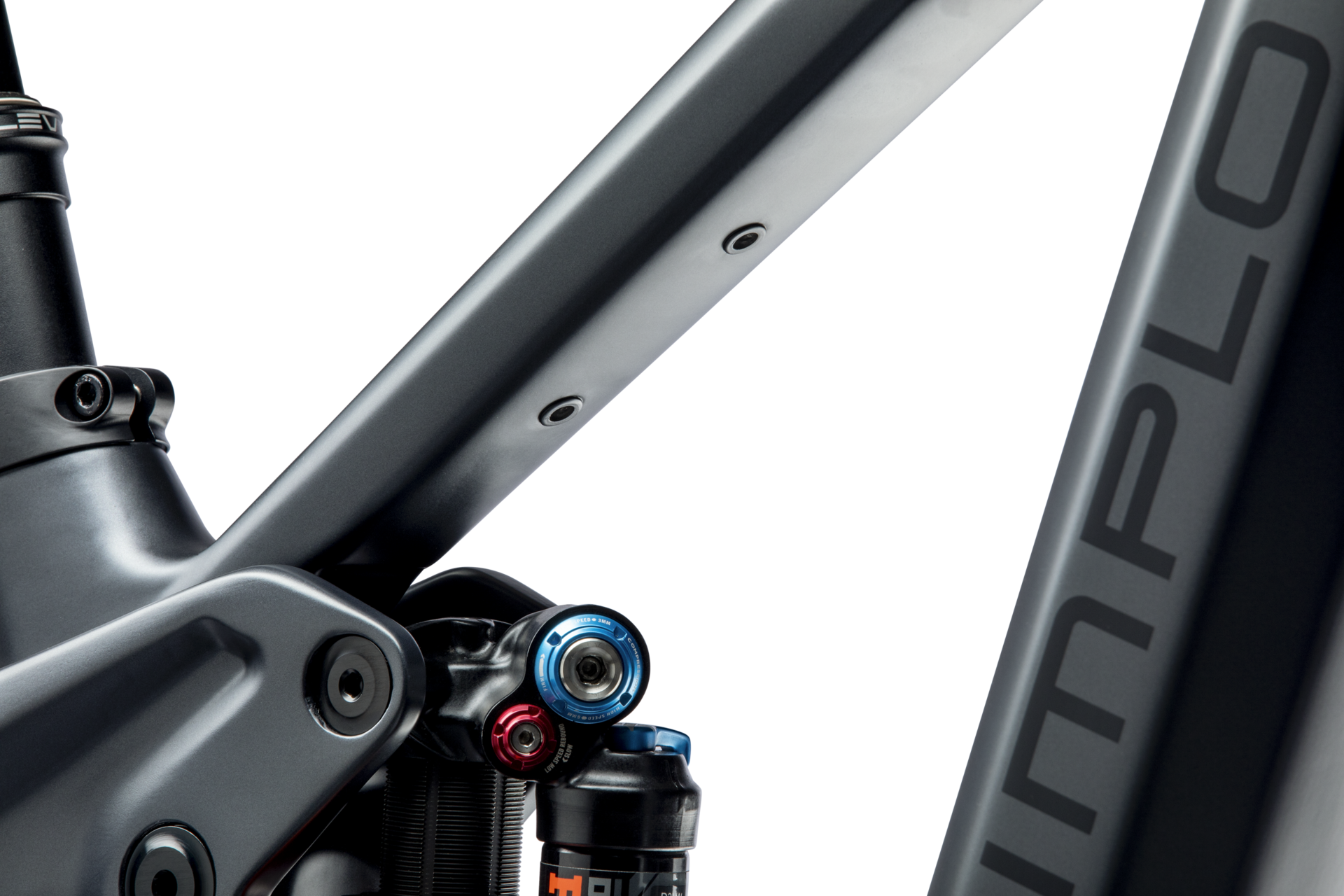

| Rear Shock | Rockshox Deluxe Select+ 150mm | 0.52 kg |

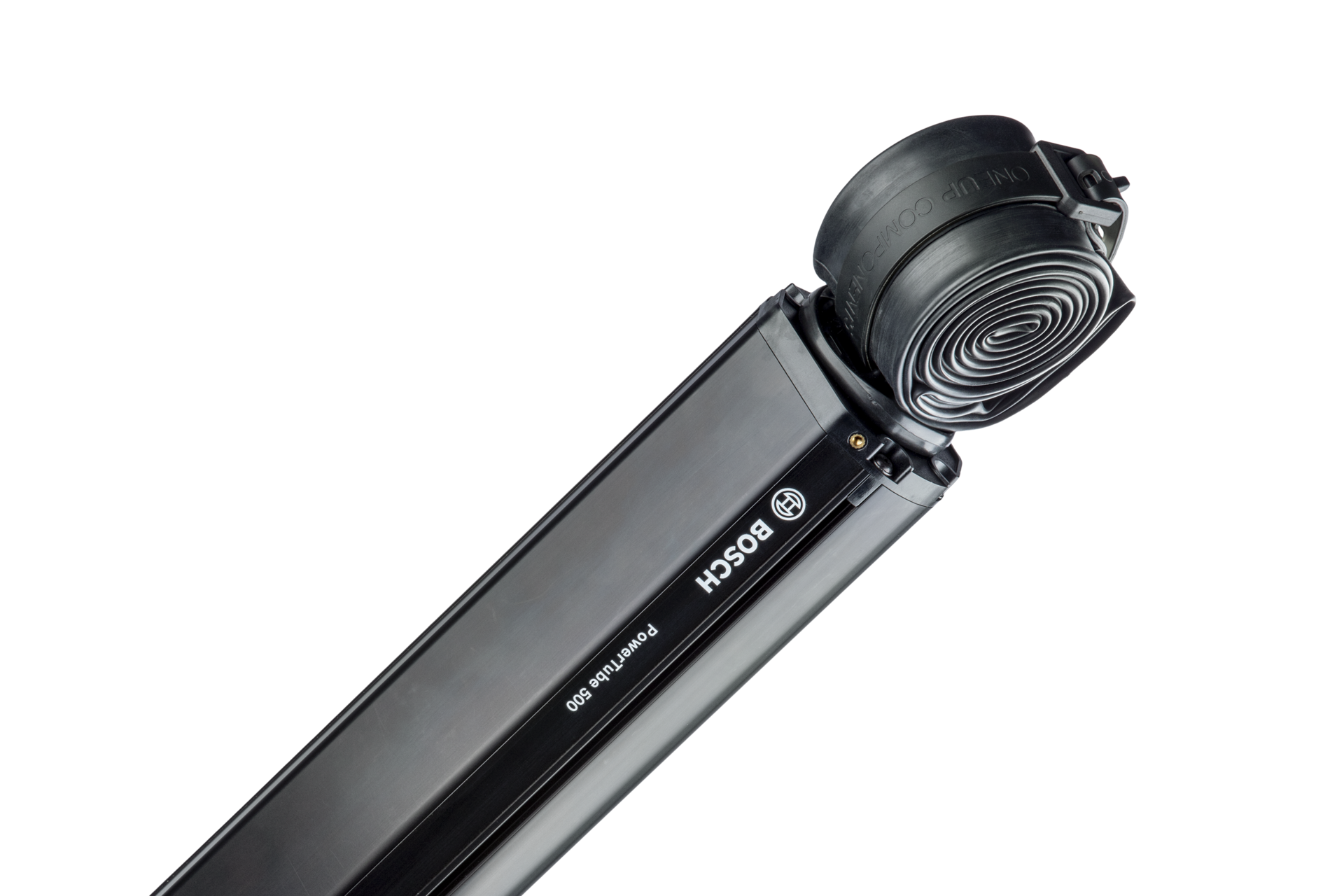

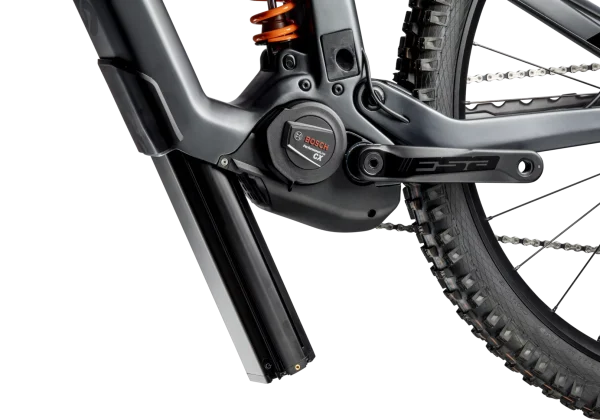

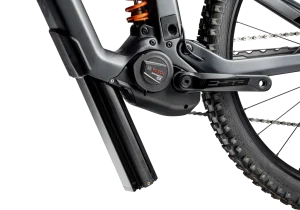

| Battery/ Cables | Bosch Performance Line CX BES3 +Bosch Powertube 750 vertical | 7.27 kg |
| Addional Battery | No additional battery | 0.12 kg |

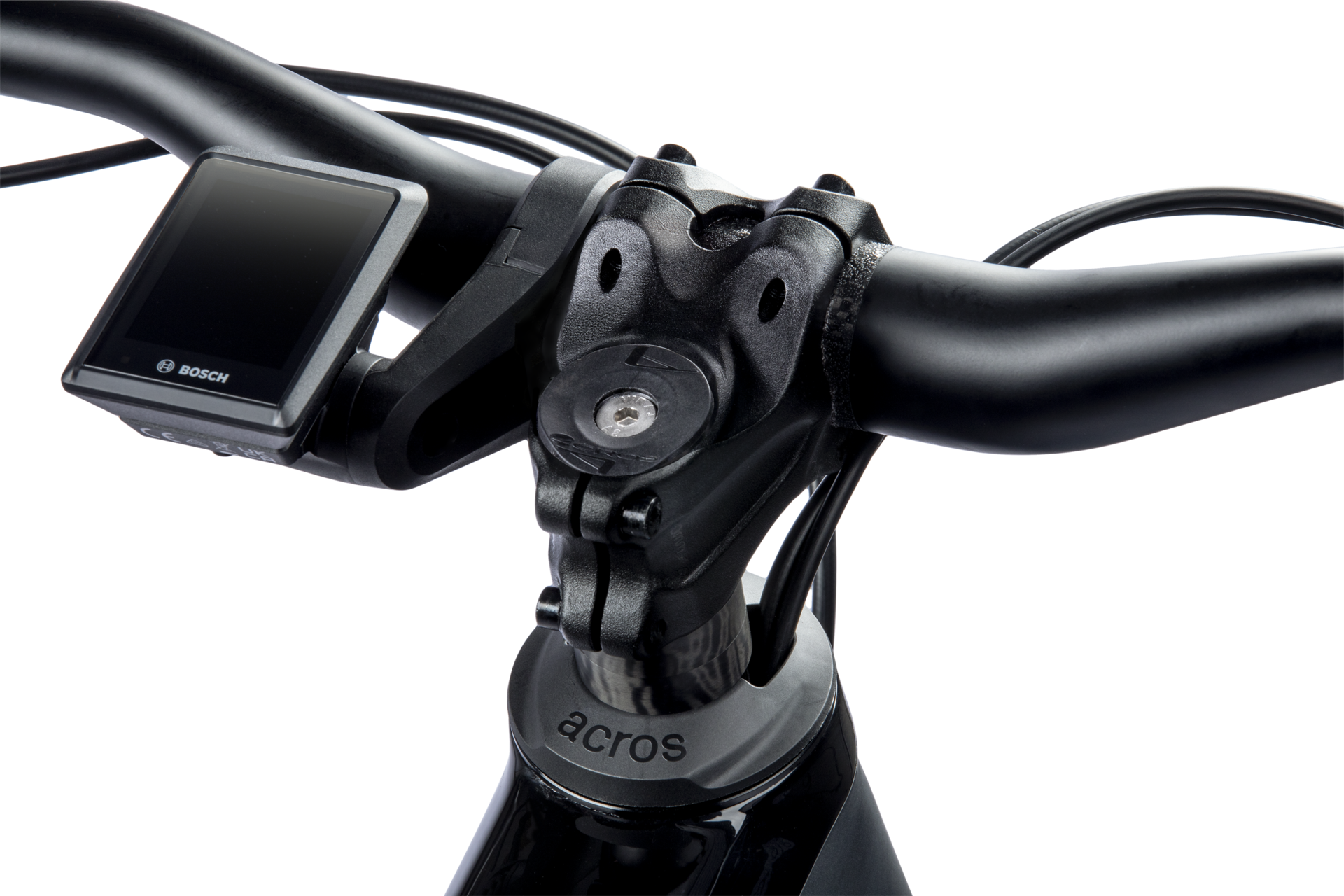

| Display | Bosch Purion 200 | 0.15 kg |
